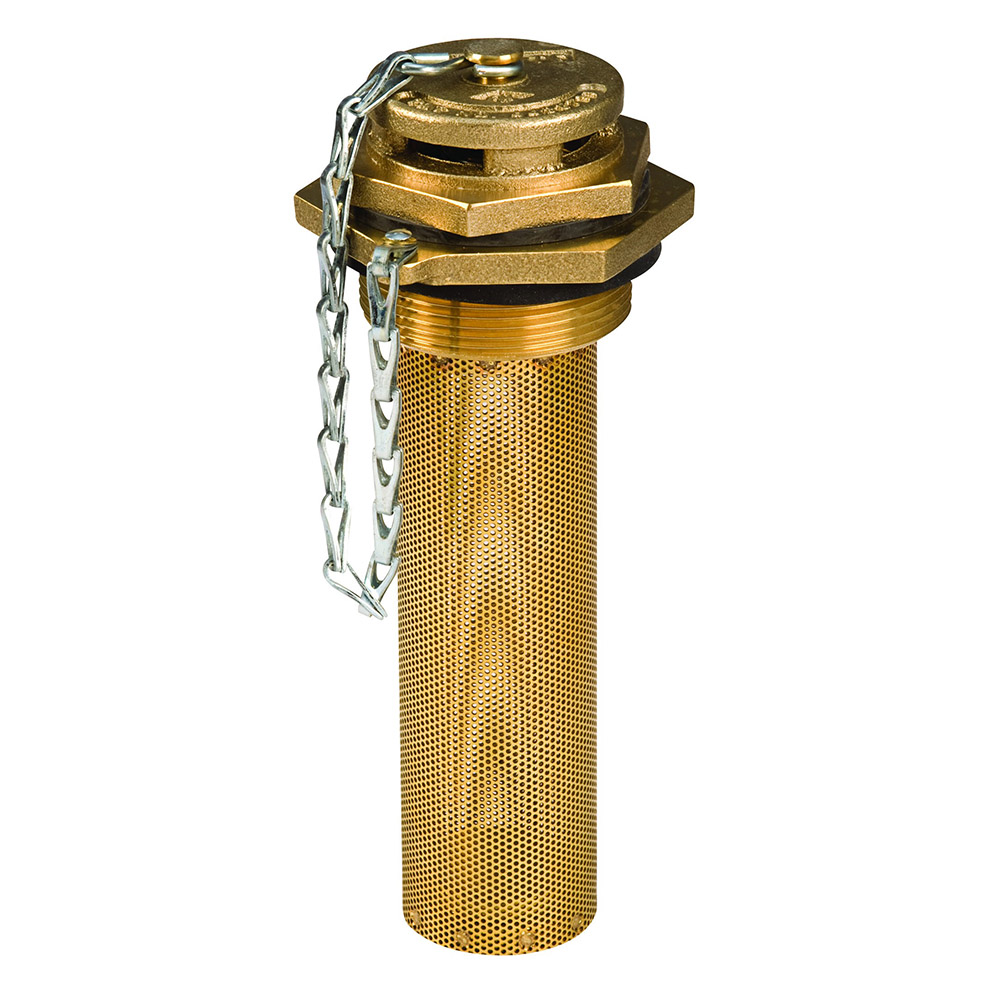

FILL DRUM VENT WITH 6 INCH FLAME ARRESTER
Safety fill vents and funnels fit the 2-in (51-mm) bung on a vertically-stored drum. The brass vent provides automatic pressure and vacuum relief, and includes a brass cap with safety chain tethered to the vent to prevent misplacement or loss. Remove cap during drum filling operations. Model no. 08211 includes a 9-in(229-mm) wide polyethylene funnel to facilitate solvent waste disposal and reduce spillage. Keep vent capped in closed position after filling operations to prevent flammable vapor from escaping. Six-inch (152-mm) flame arrester safely dissipates heat and prevents flashback from external ignition sources.
| Model No. | 08204 |
|---|---|
| International Model No. | 08204 |
| Material Specifications | Brass |
| Net Weight, lbs | 2.0 |
| Net Weight, kg | 0.9 |
| FM Approval | Yes |
| Flame Arrestor, inch | 6 |
| Flame Arrestor, mm | 152 |
| NPS/NPT inch | 2 |
| NPS/NPT mm | 51 |
APPROVALS
