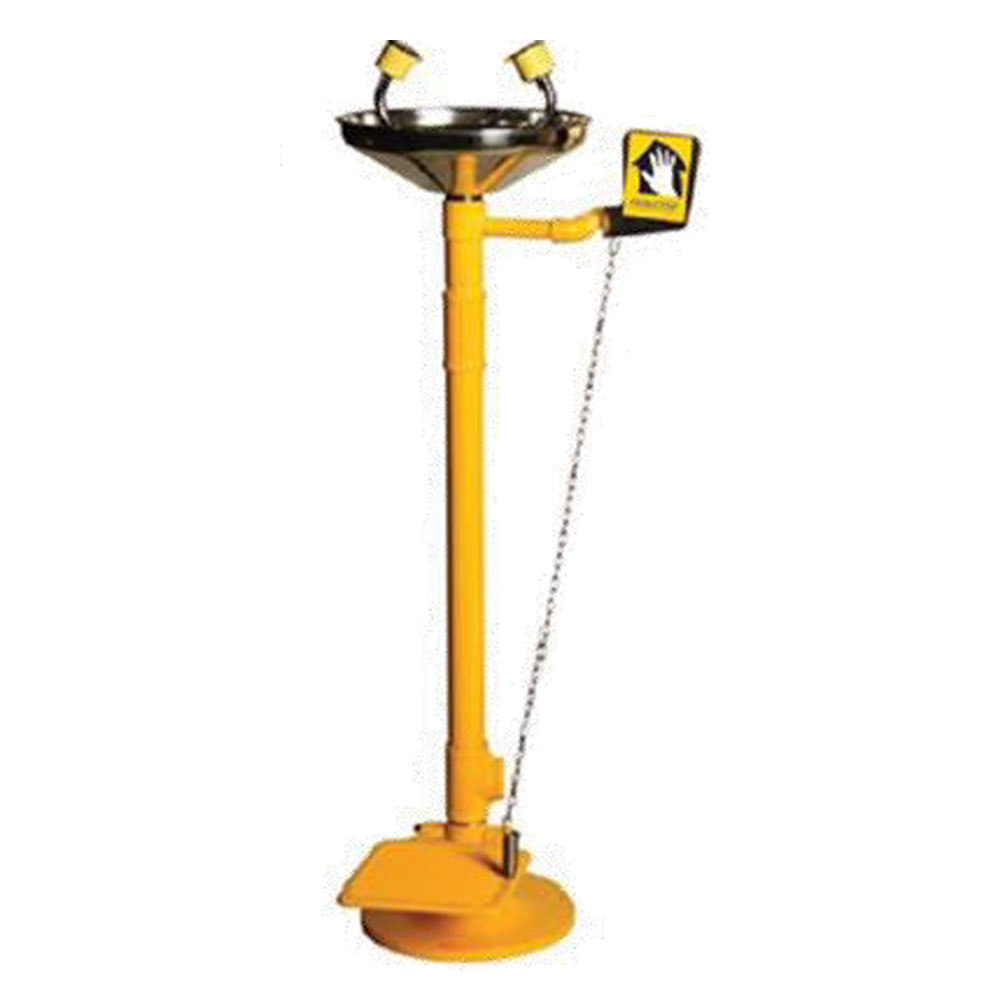

FLOOR MOUNTED EYEWASH WITH STAINLESS STEEL BOWL AND FOOT PEDAL

0 out of 5

Floor Mounted Eyewash can be Mounted on floor and operated either by hand or foot. Eyewash spray heads use soft-flow aerators and automatic pressure compensating valve. This Stainless Steel bowl makes it an ideal unit for outdoor placement.

Eyewash Bowl:
280mm or 11″ bowl is in matted stainless steel for long lasting use and recommended for outdoor installation.

Eyewash Assembly:
Stainless steel with ABS spray heads assembly with twin, soft-flow eyewash heads and instant flip-open protective dust-cover. The built in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. Spray heads also include a filter to protect users against particles from the water flow which may be damaging to the eyes and face.

Control Valve:
Stainless steel ½” IPS valve that stay open until manually closed. Control valve is operated by a large, highly visible stainless steel push-plate. Foot pedal assembly for user to operate without using hand.

Pedestal: 250mm or 10″ aluminum pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow.

Pipe & Fitting: ½” and 1¼” stainless steel pipe epoxy powder coated to bright safety yellow color.

Water Supply: ½” & Waste: 1 ¼” IPS

Certified to: ANSI Z358.1

Signage: Eyewash
