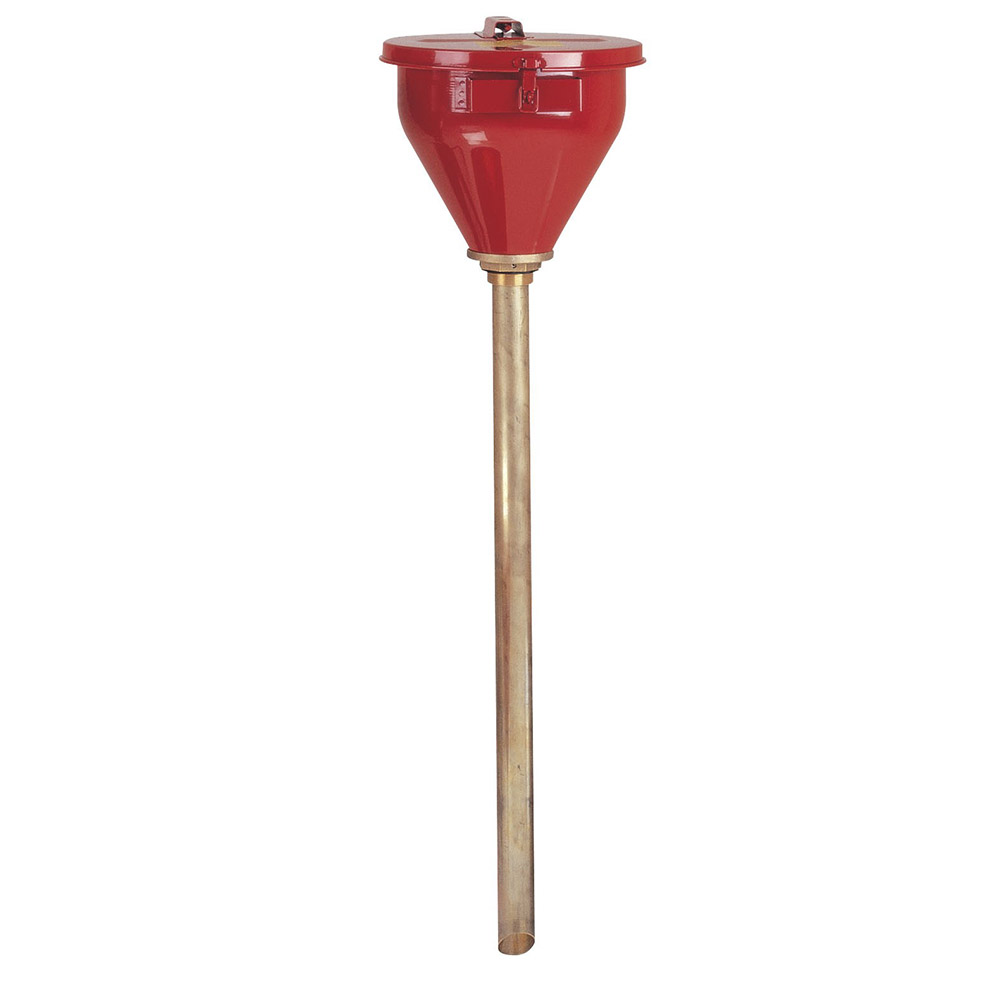

LARGE STEEL DRUM FUNNEL FOR VISCOUS LIQUIDS WITH 33 INCH BRASS TUBE AND SELF-CLOSING COVER, 2 INCH BUNG
Safety Drum Funnel, large steel funnel with self-closing cover and 33-inch brass tube. For use with Viscous Liquids.
| Model No. | 08208 |
|---|---|
| International Model No. | 08208 |
| Material Specifications | Galvanized Steel |
| Net Weight, lbs | 12.0 |
| Net Weight, kg | 5.4 |
| FM Approval | Yes |
| TUV Approval | Yes |
| Flame Arrestor, inch | 33 |
| Flame Arrestor, mm | 838 |
| Flame Arrestor Material | Brass |
| Cover Type / Closure Type | Self Close |
| NPS/NPT inch | 2 |
| NPS/NPT mm | 51 |
| Funnel Dimensions | 10.75″ Dia x 10″ H |
| 273mm Dia x 254mm H | |
| Funnel Capacity – gallon | 2.6 |
| Funnel Capacity – liter | 10 |
| Mouth Diameter – inch | 10.75 |
| Mouth Diameter – mm | 273 |
APPROVALS
